– Free from silicone, halogen-free, gold-plated contacts, drag chain suitability
– Application: CAN bus, mobile applications
– Operating voltage: 32 V DC; (wire 4+5: 5 V)
– Ambient temperarture: -25 … 90°C
– Protection: IP 65; IP 67; IP 68; IP 69K
– Cable: 5 m, PUR, Halogen-free, black, Ø 4.9 mm; with wire end ferrules; 5 x 0.34 mm² (42 x Ø 0.1 mm)

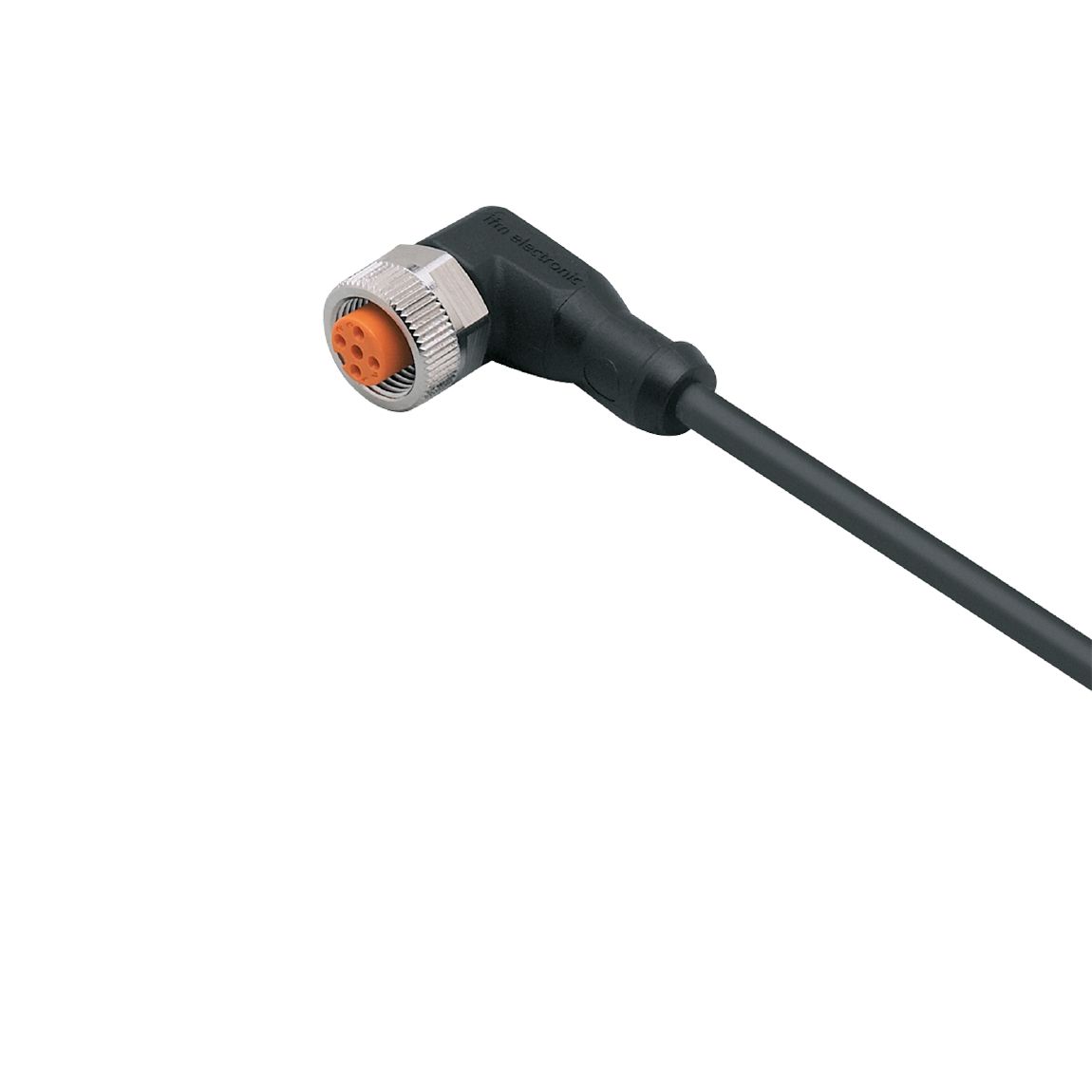

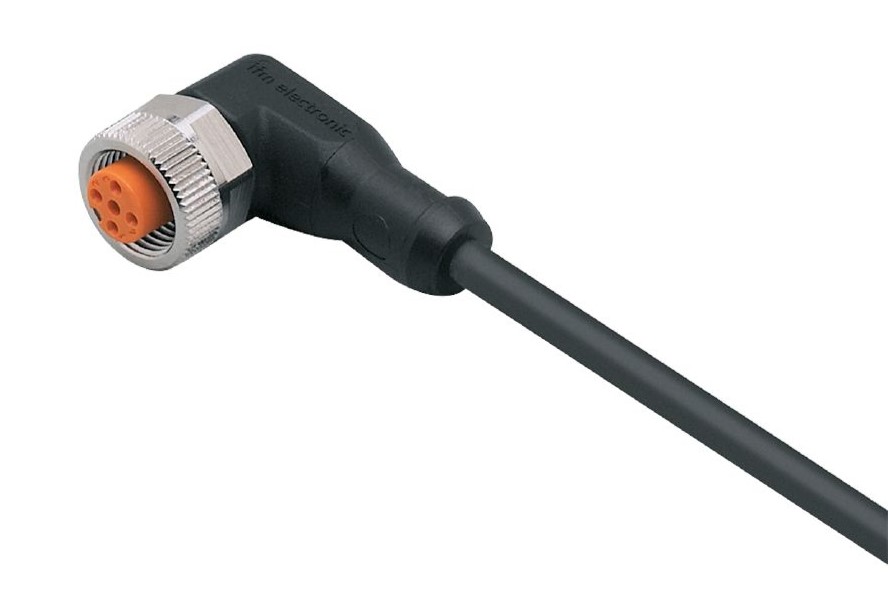

– Connector: 1 x M12, angled; coding: A; Moulded body: TPU, black; Locking: brass, nickel-plated; Sealing: FKM; Contacts: gold-plated; Tightening torque: 0.6...1.5 Nm
