– Ứng dụng: Trong công nghiệp, nhà máy tự động hóa
– Operating voltage: < 250 V AC / < 300 V DC
– Max. current load total: 4 A
– Ambient temperature: -25 … 90°C
– Moulded-body material: TPU
– Cable:
+ EVC004: 2 m, PUR, Halogen-free, black, Ø4.3 mm; 4 x 0.34 mm² (42 x Ø0.1 mm)
+ EVC005: 5 m, PUR, Halogen-free, black, Ø4.3 mm; 4 x 0.34 mm² (42 x Ø0.1 mm)

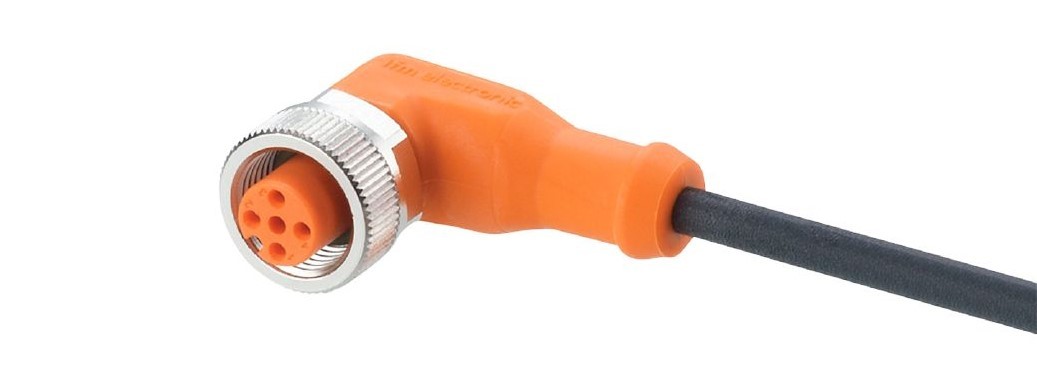

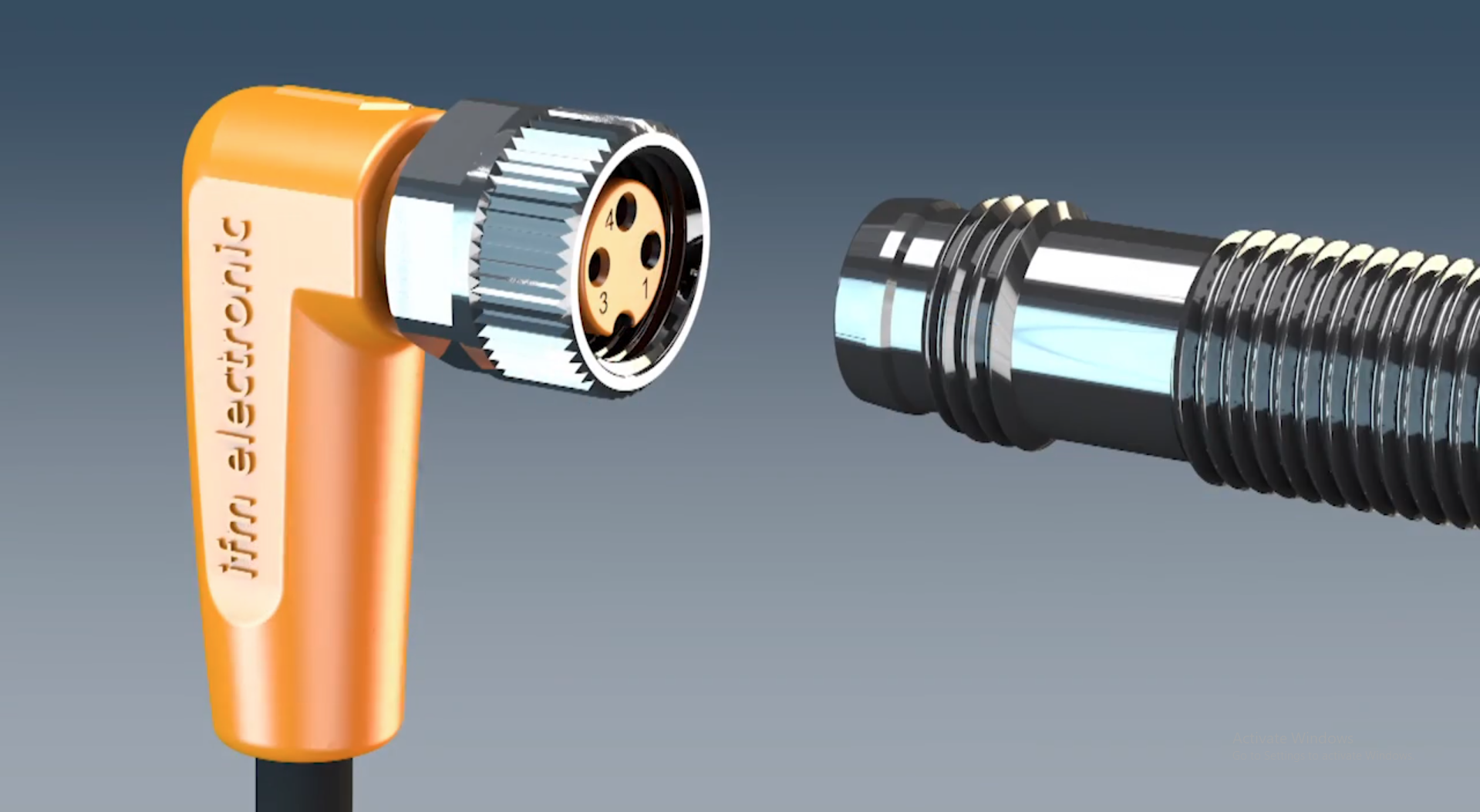

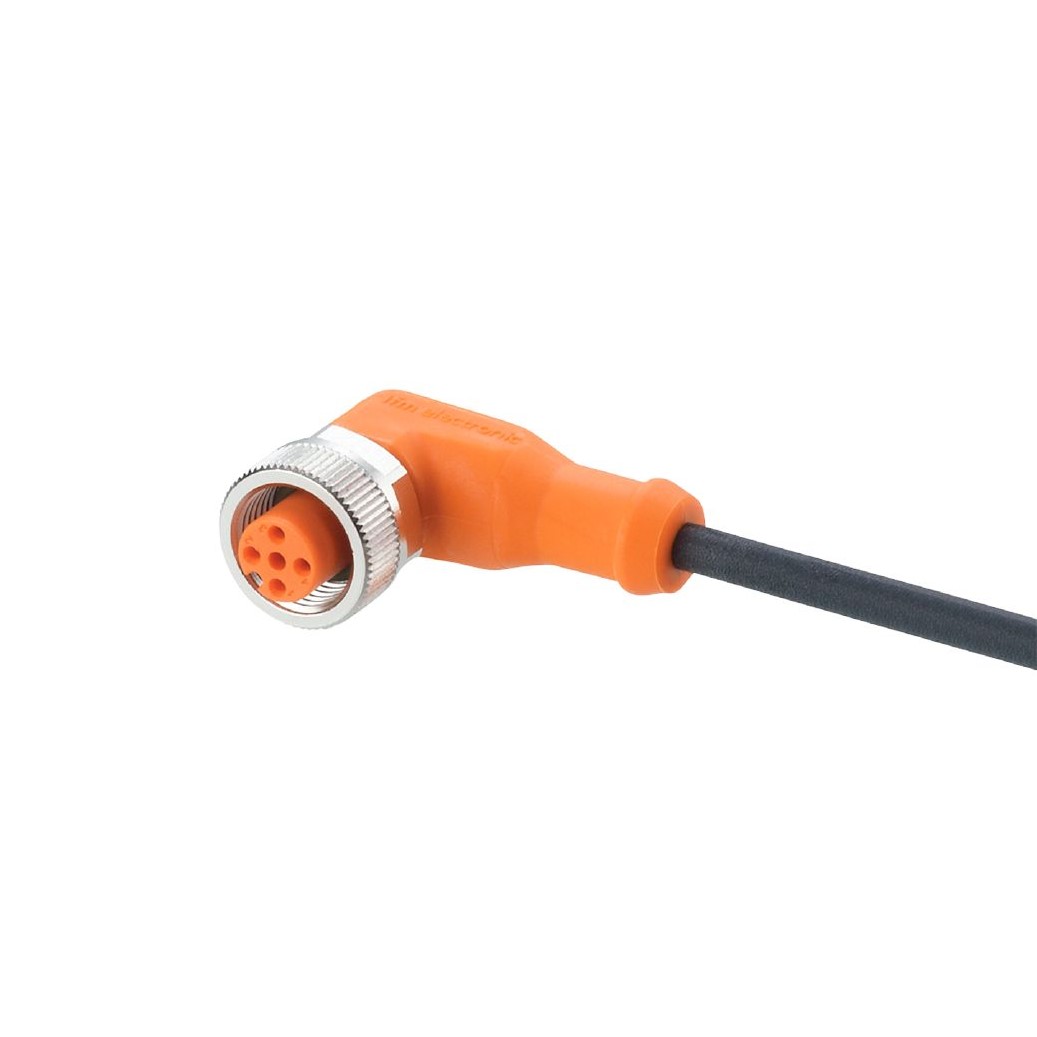

– Connector: 1 x M12, angled; coding: A; Moulded body: TPU, orange; Locking: brass, nickel-plated; Sealing: FKM; Contacts: gold-plated; Tightening torque: 0.6...1.5 Nm
