Kalmar

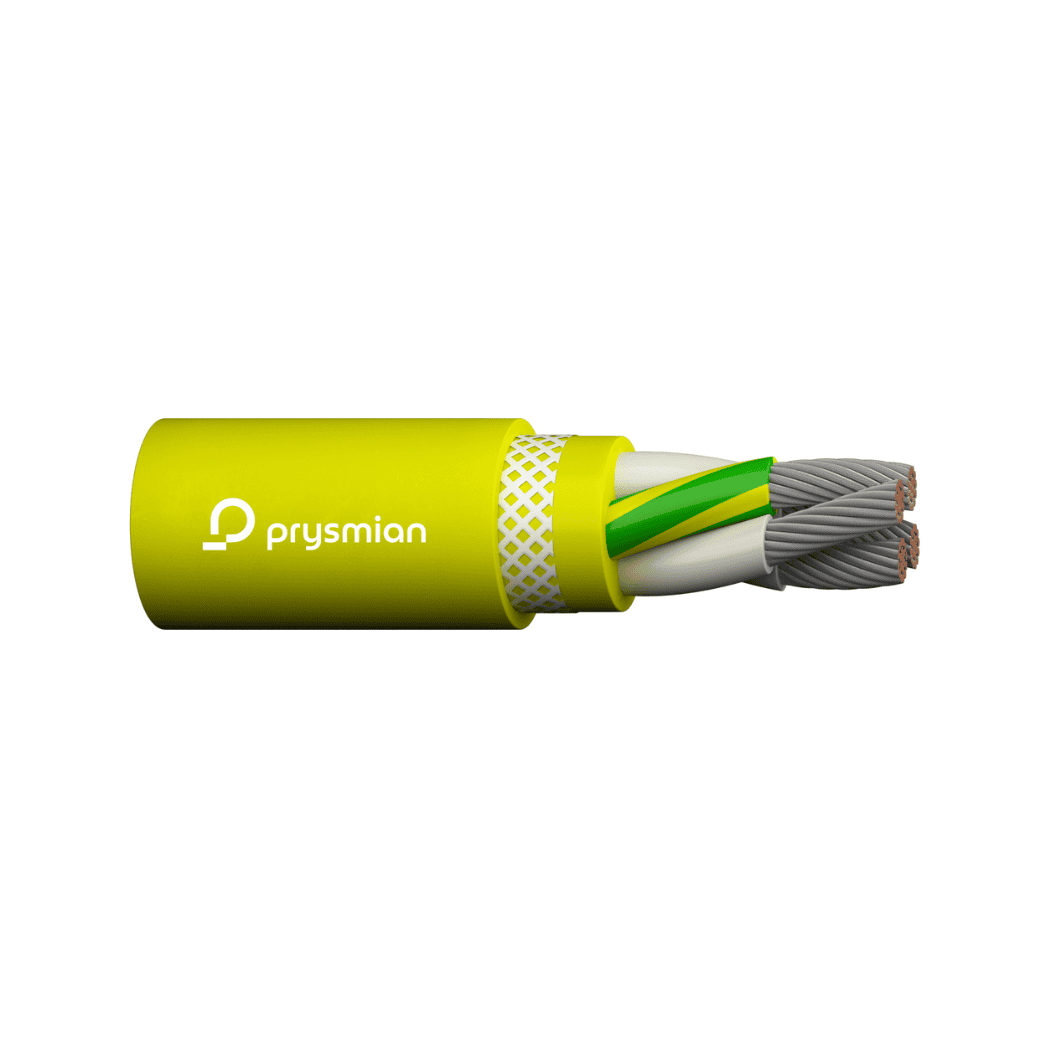

Prysmian CORDAFLEX (SMK)-V (N)SHTÖEU-J 0.6/1 kV
Low voltage reeling cable
| CORDAFLEX (SMK)-V (N)SHTÖEU | |
| Cable type | Low voltage reeling cable |
| Standard | Based on DIN VDE 0250-814 |
| Rated voltage | 0.6/1 kV |
| CABLE STRUCTURE DETAILS | |
| 20x2.5 mm2 | 20 power/control cores with 2.5mm2 cross-section |
| 3xCAN-BUS | 3 twisted pairs for CAN-BUS communication, ensuring stable signal transmission and electromagnetic interference protection |
| 2x(2x2.5)C | 2 control signal pairs, each with 2 cores of 2.5 mm2, typically shielded for EMI resistance |
| KEY TECHNICAL FEATURES | |
| Conductor | Extra-fine tinned copper wires, complying with FS standard |
| Insulation | Made from high-quality EPR-based PROTOLON MS compound, providing superior mechanical and electrical properties |
| Outer sheath | Highly resistant to abrasion, oil, weather, and UV radiation |
| Operating temperature | Up to +90°C |
| EMC protection - | Designed to minimize electromagnetic interference, ensuring stable data transmission in harsh industrial environments |
