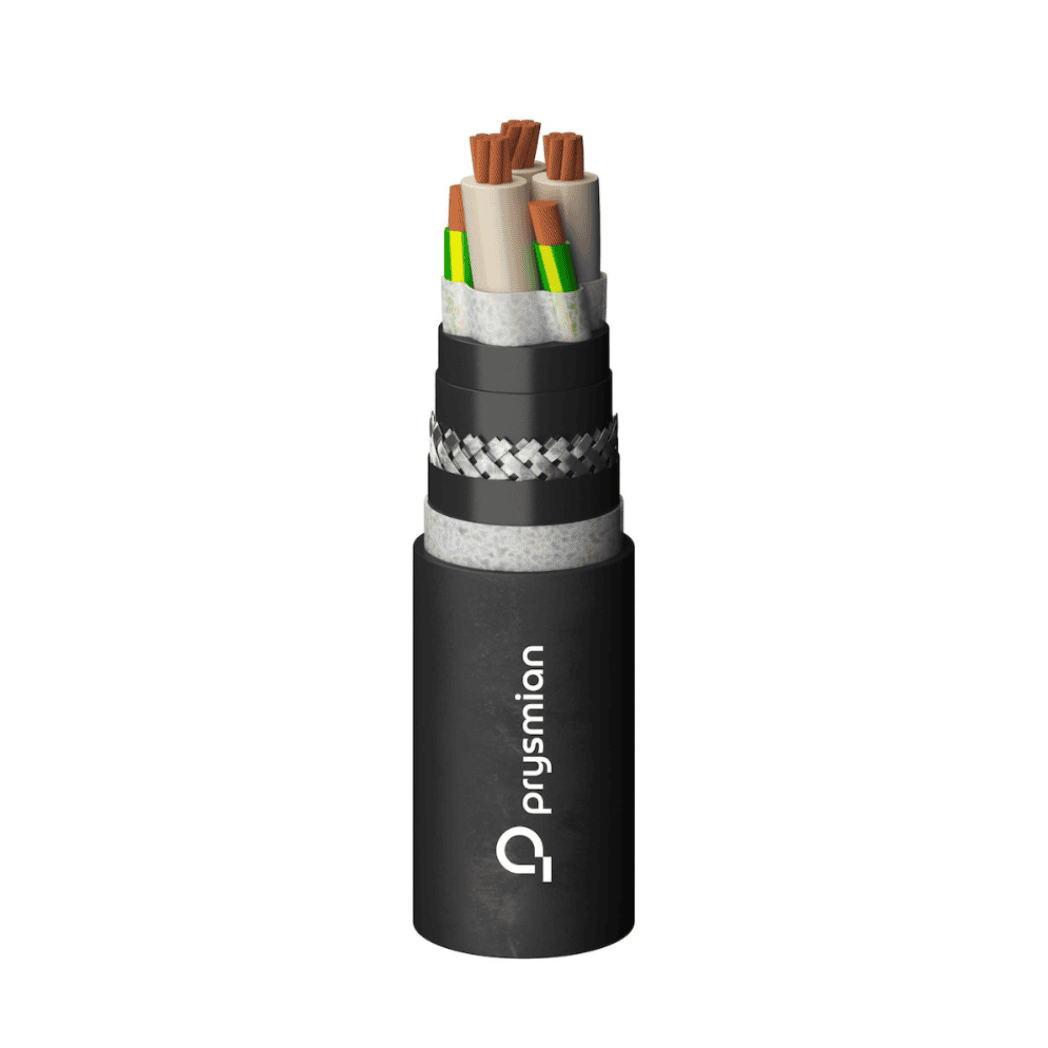

Prysmian RONDOFLEX (C)-FC (N)GRDGCGOEU-J 0,6/1KV
Low voltage screened round cables for festoon application
| CABLE DESIGN | ||
| Conductor – Core insulation material – – Material inner sheath – Screen construction Screen material – – Material outer sheath – | Finely stranded copper, bare, class 5 PE: Extremely finely stranded copper, tinned (class FS) EPR rubber PROTOLON MS Special compound > 3GI3 Rubber Special EPR compound GM1b Braiding Copper, tinned Coverage: overall screen > 80% Transfer impedance < 100mΩ/m at ≤ 30MHz Chlorinated polyethylene (CM/CPE) Special compound > 5GM3 | |
| ELECTRICAL PARAMETERS | ||
| Rated voltage UO/U [Um] – – Test voltage | 0.6/1 (1.2) kV Peak voltage 2400 V Frequency converter with Umax 690 V 5 kV | |
| THERMAL PARAMETERS | ||
| Max. conductor temperature Max. conductor temperature at short circuit Ambient temperature fix installation (min.) Ambient temperature fix installation (max.) Ambient temperature flexible installation (min.) Ambient temperature flexible installation (max.) | 90°C 250°C -50°C 80°C -35°C 80°C | |
| MECHANICAL PARAMETERS | ||
| Permanent tensile strength Bending radius – – | 15 N/mm² Acc. to VDE 0298-3 4 x D fixed installation 5 x D flexible operation | |
| Basic construction | Diameter conductor [mm] | Cable diameter (min) [mm] | Cable diameter (max) [mm] | Cable weight [kg/km] | Max. tensile strength [N] | Bending radius moving (min) [mm] |
4x2,5 | 2 | 13 | 15 | 340 | 150 | 75 |
4x4 | 2.5 | 14.8 | 17.8 | 480 | 240 | 89 |
4x6 | 3 | 16.2 | 19.2 | 640 | 360 | 96 |
4x25 | 6.8 | 28.3 | 31.3 | 1,950 | 1,500 | 157 |
4x10 | 4 | 19.6 | 22.6 | 890 | 600 | 113 |
4x16 | 5.7 | 24.2 | 27.2 | 1,340 | 960 | 136 |
3x16+3x2,5 | 5.7 | 22.4 | 25.4 | 1,150 | 720 | 127 |
3x25+3x4 | 6.8 | 25.4 | 28.4 | 1,590 | 1,120 | 142 |
3x35+3x6 | 8.1 | 29.3 | 32.3 | 2,160 | 1,570 | 162 |
3x50+3x10 | 9.6 | 35.4 | 38.4 | 3,060 | 2,250 | 192 |
3x70+3x10 | 11.5 | 40.8 | 43.8 | 3,960 | 3,150 | 219 |
3x95+3x16 | 12.9 | 43.4 | 46.4 | 4,840 | 4,270 | 232 |
3x120+3x16 | 14.6 | 47.8 | 50.8 | 5,910 | 5,400 | 254 |
3x150+3x25 | 16.5 | 54.6 | 57.6 | 7,540 | 6,750 | 288 |
3x185+3x35 | 18.1 | 59.9 | 62.9 | 9,300 | 8,325 | 315 |
CABLEPROPERTIESELECTRIC –RONDOFLEX(C)-FC(N)GRDGCGOEU-J0,6/1KV
| Basic construction | Nominal operation capacitance [nF/km] | Operation self inductance [mH/km] | Conductor resistance at 20°C [Ω/km] | Current carrying capacity [A] |
4x2,5 | 340 | 0.32 | 7.98 | 32 |
4x4 | 360 | 0.32 | 4.95 | 43 |
4x6 | 420 | 0.3 | 3.3 | 56 |
4x25 | 700 | 0.27 | 0.78 | 138 |
4x10 | 520 | 0.28 | 1.91 | 78 |
4x16 | 600 | 0.27 | 1.21 | 104 |
3x16+3x2,5 | 750 | 0.23 | 1.21 | 104 |
3x25+3x4 | 700 | 0.24 | 0.78 | 138 |
3x35+3x6 | 800 | 0.23 | 0.554 | 170 |
3x50+3x10 | 780 | 0.23 | 0.386 | 212 |
3x70+3x10 | 930 | 0.23 | 0.272 | 263 |
3x95+3x16 | 1,030 | 0.22 | 0.206 | 316 |
3x120+3x16 | 1,070 | 0.22 | 0.161 | 370 |
3x150+3x25 | 1,040 | 0.22 | 0.129 | 424 |
3x185+3x35 | 1,100 | 0.22 | 0.106 | 484 |
Current carrying capacity acc. VDE 0298-4, installed free in air at 30°C ambient temperature
